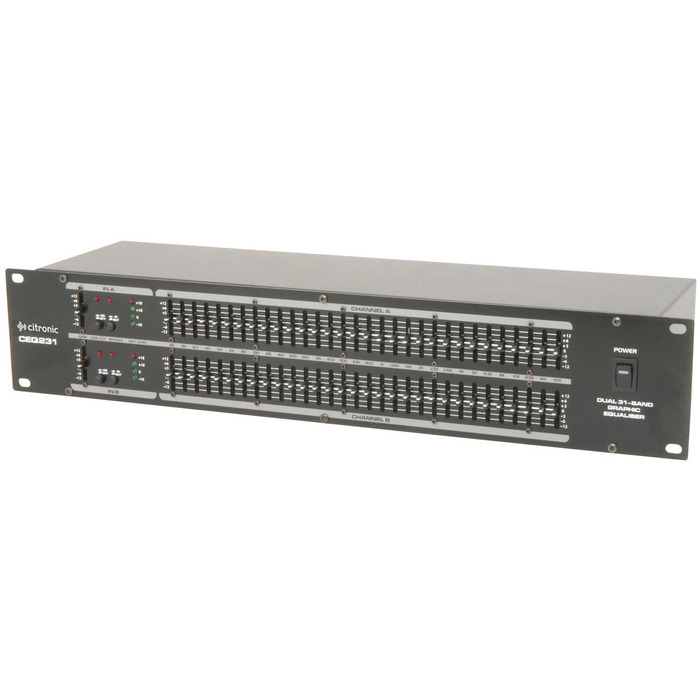

31 Band Graphic Equaliser

2 X 31-Band 1/3 Octave ISO Spacing. RF Filtered Servo-Balanced Inputs. Constant Q Each Band. Bypass Switch For EQ Comparison. Low-Cut Switch Each Channel. Gain Control Each Channel. Led VU Meters. 19" Rackmount 2UPower supply:115/230Vac- 50/60Hz (IEC)
Frequency response:20Hz-20kHz
Input impedance : balanced:40k ohms
Input impedance : unbalanced:20k ohms
Output impedance : bal/unbal:330 ohms
Channel separation:>50dB
Signal to noise ratio:>102dB
THD:0. 005%
Dimensions:482 x 88 x 139mm
Weight:3. 3kg.

The CEQ231 is a 19" 2U rack mounted dual 31-band graphic equaliser- which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control. . graphic equaliser-19" graphic equaliser-rack mount graphic equaliser
