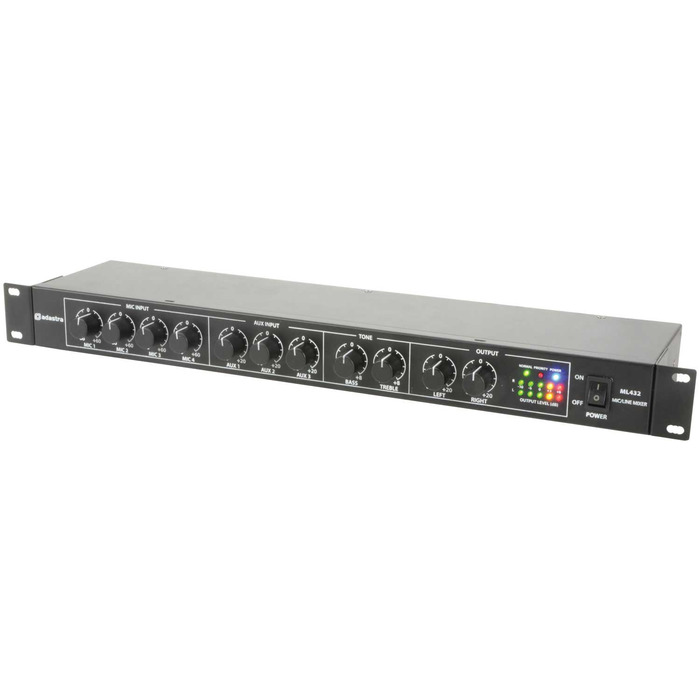

Four Microphone and 3 Line Level Mixer

4 Balanced Microphone Inputs. +20V Phantom Power On Priority Mic Input. 3 Stereo Aux Line Inputs. Can Tap From An Existing 100V PA System. 24V DC Power OptionPower supply:100-240Vac- 50/60Hz (IEC) or 24Vdc (terminals)
Fuse:T1AL 250V (mains) or F500mA (24Vdc)
Phantom power:+20Vdc (mic1 XLR input only)
Inputs : mic:4 x balanced 6. 3mm jack (+XLR for mic1)
Inputs : aux:3 x L+R RCA
Inputs : priority:Line level (6. 3mm jack)- 100V (terminals)
Outputs:Left + Right 6.

3mm jack (unbalanced)
Controls:4 x Mic level- 3 x Aux level- Treble- Bass- L+R output
Rear panel controls:Aux muting level- priority input level
Input impedance:2. 2k Ohms (mic/line)- 10k Ohms (aux)
Frequency response : mic:130Hz - 21kHz
Frequency response : line:120Hz - 26kHz
Frequency response : aux:50Hz - 35kHz
Input sensitivity : mic:-50dBV
Input sensitivity : line:-19dBV
Input sensitivity : aux:-12dBV
Signal to noise ratio : mic:54dB
Signal to noise ratio : aux/line:58dB
THD:0. 05%
Dimensions:482 x 130 x 44mm
Weight:1. 43kg. Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs.

Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems. . mic and mixer-mic set-microphone set
