Heavy Duty Lighting Gantry with Trussing and Winch Stands 4 x 3M

Complete Stage Lighting Gantry for Heavy Duty Use. Includes 4 Wind Up Stands. Supplied with 10m of Trio220 Trussing. Can Accept Additional Truss to Extend LengthMaximum Load: :- 200Kg evenly distributed Maximum Height: :- 3. 9M Span: :- :- 3M (2+1) + 4M (2+2) + 3M (2+1) Minimum Height: :- 2. 1M Total Weight: :- 145kg. This complete lighting gantry is suitable for a range of applications including stage and exhibition use. The strong and robust design will offer a complete stage lighting support system with wind up stands for easy lifting and lightweight aluminium trussing.

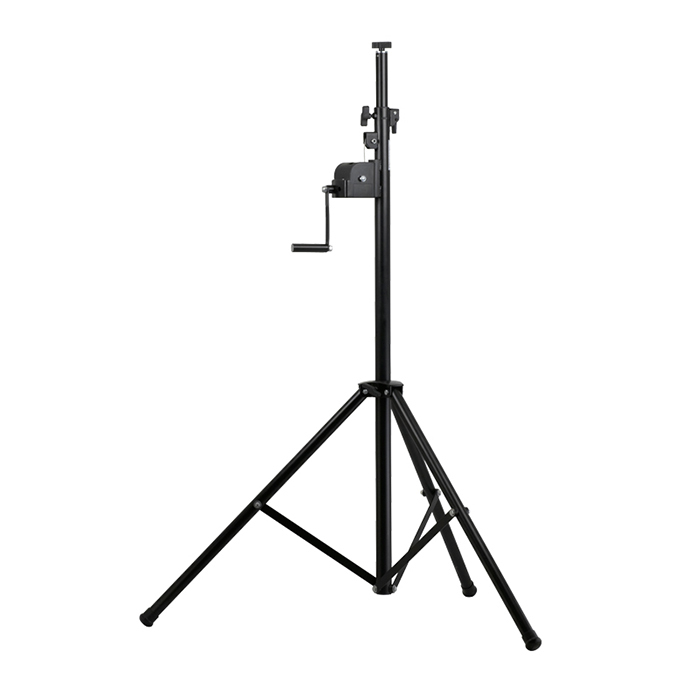

Lights can be fitted at a reasonable height and then winched up to a working height- making this set up ideal for teams with minimal set up staff. The size supplied here is 4 x 3 metres- which can be lifted to a height just under 4 metres- but extra sections of TRIO220 truss can be added to increase the dimensions as desired. The whole assembly breaks down easily- with a maximum length of about 2 metres. The cross section of the truss bar is 32mm- so suitable for a range of standard lighting clamps- such as our code CUP12. The stands themselves are extremely robust- offering support of up to 60kg.

The tripod legs are extendable to cater for uneven surfaces - each stand can reach 3. 9M and offers a 35mm pole. . Heavy duty lighting gantry with trussing and winch stands- 4 x 3M. Complete stage lighting gantry for heavy duty use- supplied with 10m of Trio220 trussing. stage lighting-stage lighting gantry-stage lighting bridge-theatre lighting-stage lighting truss
