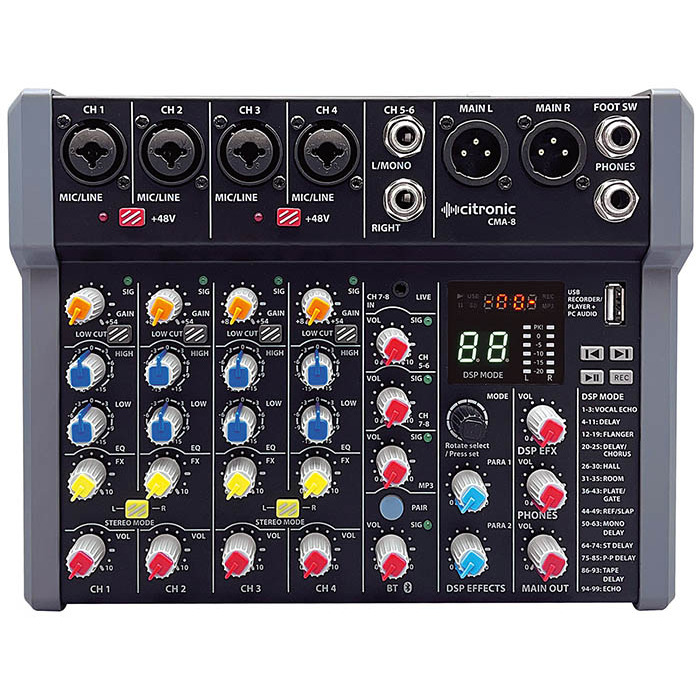

8 Channel Audio Mixer Compact Design with DSP USB and Bluetooth

DSP Effect Section with 99 Adjustable Presets. USB mp3 Audio Player/Recorder. Bluetooth Receiver with Independent Volume Control. PC/Mac Audio Device and Aux Power via USB A Connection. Switchable +48V Phantom Power. Mono Mic Line Inputs can be Paired to Stereo. Balanced XLR/Jack Mono Inputs. Stereo Line Input Jacks and Stereo Minijack Input. Supplied in a Padded Transit Bag. USB Type-C Power SupplyPower Supply: 5Vdc- 1A (USB-C Adaptor Included) Power Consumption: 5W CMAMIX6 Mic Inputs: 2 XLR/Jack (Mono Mic/Line) Line Inputs: 1 (Mono Jack) 3.

5mm Jack Input: 1 USB Inputs: 1 Phantom Power: +48V (XLR Inputs Only) Dimensions: 183 x 182 x 60mm Weight: 875g CMAMIX8 Mic Inputs: 4 XLR/Jack (Mono Mic/Line) Line Inputs: 1 (Mono Jack) 3. 5mm Jack Input: 1 USB Inputs: 1 Phantom Power: +48V (XLR Inputs Only) Dimensions: 232 x 183 x 60mm Weight: 1. 12Kg CMAMIX10 Mic Inputs: 6 XLR/Jack (Mono Mic/Line) Line Inputs: 1 (Mono Jack) 3. 5mm Jack Input: 1 USB Inputs: 1 Phantom Power: +48V (XLR Inputs Only) Dimensions: 282 x 183 x 60mm Weight: 1. 39Kg. Compact format audio mixer with 2- 4 or 6 mono input channels- a stereo line input and a further minijack stereo input.

Each mono mic/line channel has a combo XLR/jack input with +48V phantom power switchable in pairs for the XLR inputs. Each mic/line channel has a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones. Each mono channel also has High/Low EQ controls and an FX level control. Pairs of mono channels can be linked to act as a stereo left + right pair as required. The onboard foot-switchable DSP effects engine has 99 presets for delay- reverb and modulation effects- each of which can be adjusted using two parameter controls.

An onboard Bluetooth receiver has an illuminated pairing button and independent volume control. The USB type-A port on the top panel is for playback of audio files or can be used to record the main outputs to a USB storage device or as an external audio device when connected to a laptop. Output is delivered to a pair of balanced XLR connectors to provide low noise operation for high quality studio or live performances. . audio mixer-compact audio mixer-mixing desk-stage mixer
