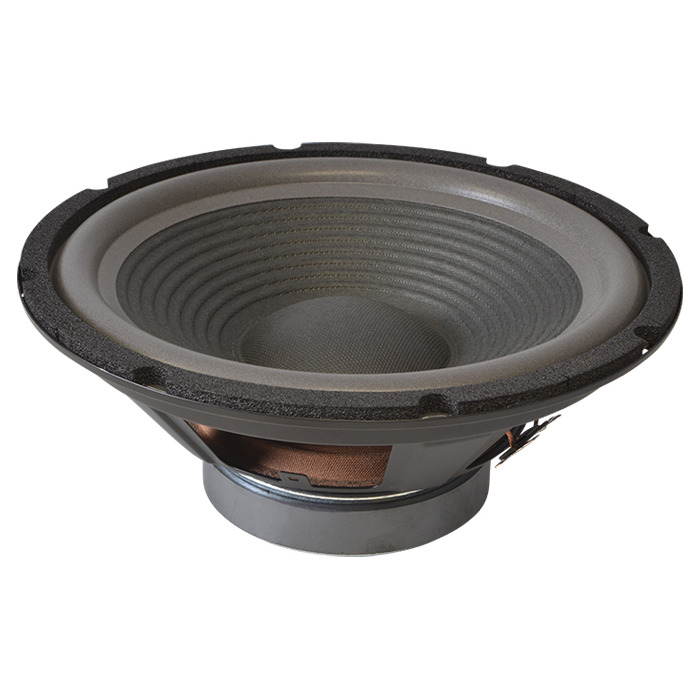

10" Speaker Driver 180 Watt 8 Ohm Full Range Chassis Speaker

10" Woofer/Full Range Driver. For Speaker Cabinet Repair. New Speaker Projects. 160 watts 8 OhmDriver Size: 10" Power RMS: 180W Impedance: 8 Ohm Frequency Range: 37-4000kHz Sensitivity: 94. 3dB Bolt Circle Diameter: 250mm Cut-out Diameter: 236mm Dimensions: 256 x 115mm Weight: 1. 89Kg Thiele & Small Parameters: Resonance Frequency (Fs): 37hz Mechanical Factor (Qms): 2. 36 Electrical Factor (Qes): 0. 87 Total Factor (Qts): 0. 63 BL Factor (BL): 4. 89T. m Effective Moving Mass (Mms): 14. 8gr Compliance (Cms): 1. 21 u M/N Equivalent Cas Air Load (Vas): 297L Effective Piston Area (Sd): 41. 55m2.

This 10-inch Lyonforge woofer is designed for both repairs and new speaker projects. It can handle 180 watts of power and has an 8 Ohm impedance. The woofer is a full-range driver- making it suitable for PA speaker repairs and systems that require good mid-range and bass. It's useful for updating existing setups- replacing old drivers or building new sound systems- providing excellent audio quality. .

180W 8 Ohm 10" full range Lyonforge woofer speaker driver ideal for updating existing setups- replacing old drivers or building new sound systems. speaker driver-speaker chassis-10" speaker driver-full range speaker driver-full range speaker chassis
