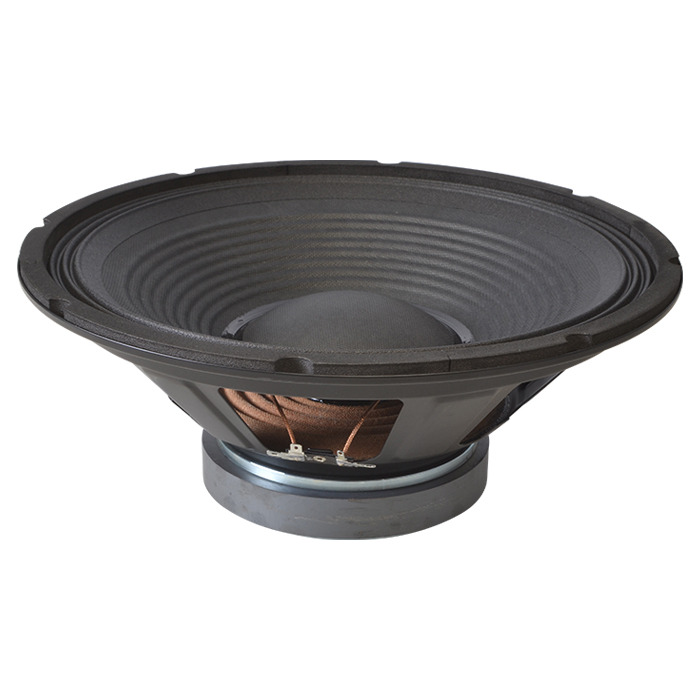

12" Speaker Driver 200 Watt 8 Ohm Bass and Midrange Woofer

12" Woofer/Full Range Driver. For Speaker Repairs. New Speaker Projects. 200 watts 8 OhmDriver Size: 12" Power RMS: 200W Impedance: 8 Ohm Frequency Range: 49-1800kHz Sensitivity: 93. 5dB Bolt Circle Diameter: 300mm Cut-out Diameter: 282mm Dimensions: 306 x 128mm Weight: 2. 95Kg Thiele & Small Parameters: Resonance Frequency (Fs): 49hz DC Resistance (Re): 6. 5 Ohms Mechanical Factor (Qms): 2. 272 Electrical Factor (Qes): 0. 801 Total Factor (Qts): 0. 592 BL Factor (BL): 11. 6T. m Effective Moving Mass (Mms): 53gr Compliance (Cms): 192 u M/N Equivalent Cas Air Load (Vas): 96L Effective Piston Area (Sd): 59m2.

If you're looking to upgrade your PA system or start a new speaker project- consider the Lyonforge 12" Woofer. It has a power handling capacity of 200 watts and an 8 Ohm impedance- providing strong performance for both repairs and custom builds. This woofer serves as a full range driver- offering balanced sound across different frequencies. It's suitable for upgrading PA speakers- fixing old cabinets- or building a new speaker system.

The woofer comes with solder terminals for easy installation and is built to last- ensuring reliable performance for a long time. . speaker driver-speaker chassis-12" speaker driver-full range speaker driver-full range speaker chassis
