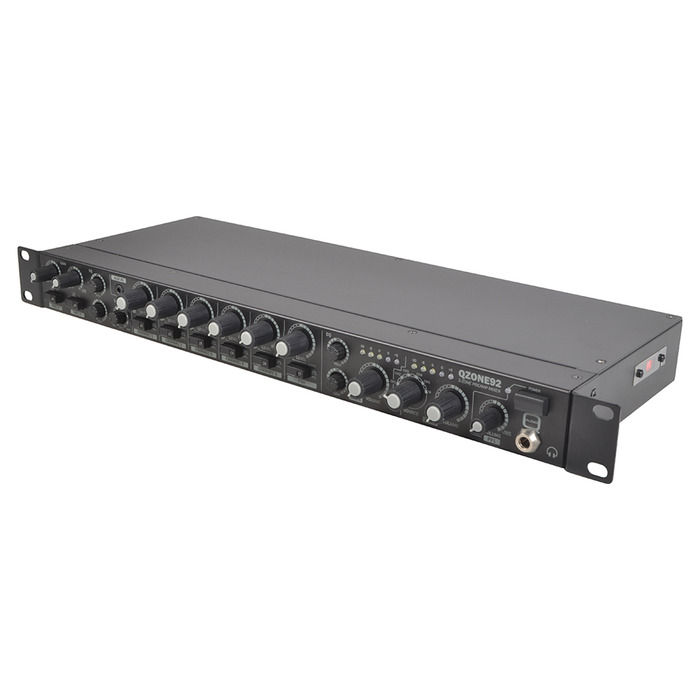

2 Zone Installation Mixer with 6 Stereo Inputs + 2 Mic Inputs

Easy To Use Zone Mixer. Compact 1U 19" Rack Mount Design. 2 Microphone Inputs. 6 Line Inputs. 2 Band EQ For Main Output. Emergency Input & Mute Facility. 12V Phantom Power for Condenser MicrophonesUnit Size: 1U Dimensions: 483 x 45 x 152mm Weight: 2. 2Kg. The Q Audio QZONE92 is a UK-designed- user-friendly 1U two-zone mixer- ideal for installations in bars- restaurants- shops- and gyms. It offers six music input channels- with inputs 1 and 2 equipped with rear-panel RCA line inputs- which can be switched to microphone channels via a jack socket if needed. Additionally- input 1 provides a convenient front-panel 3.

5mm jack for easy connection to MP3 players and mobile devices. The mixer also features two dedicated microphone inputs with a 2-band EQ- accessible via 1/4" jack plugs. The main output includes volume- bass- and treble controls and can deliver either a balanced or unbalanced signal to suitable amplifiers. The zone output has its own volume control and allows for routing either input channels 1-5 or the master volume via a mono balanced output- enabling flexible distribution of audio sources or volume levels across different areas.

All music inputs and outputs have rear-panel volume controls- allowing settings to be established during installation that remain secure once rack-mounted. The unit also includes a line input for emergency announcements- which mutes all music when activated. A compatible relay alarm can be connected- allowing automatic muting in the event of an alert. . An easy to use 1U two zone mixer for bars- restaurants- shops and gym installations with 6 music input channels and 2 microphone inputs. zone mixer-2 zone mixer-audio mixer
